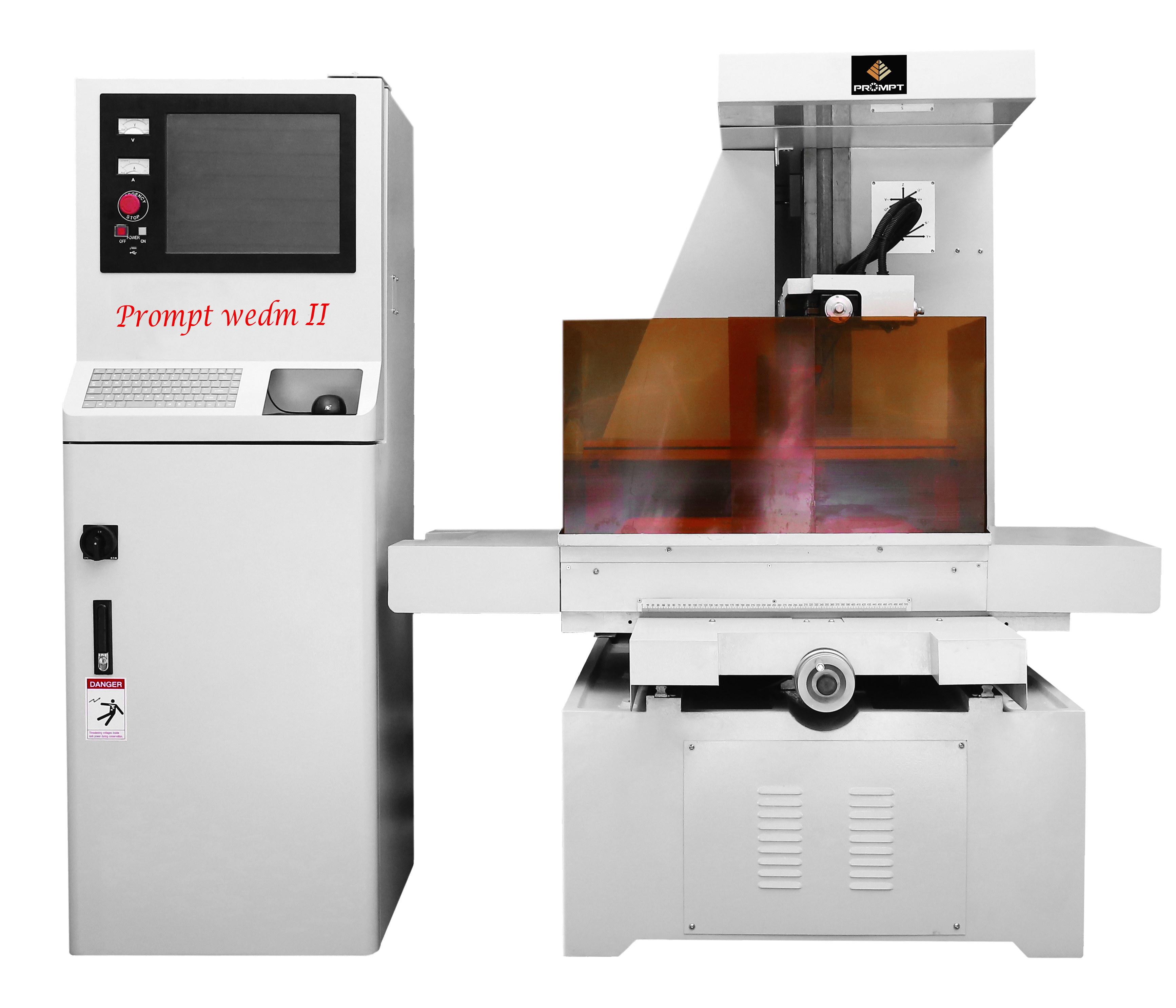

- MOLYBDENUM WIRE CUT EDM
| Model | PA-430 |
|---|---|
| Work Table Dimension | 360*610 mm |
| Machine Travel | 400*320 mm |
| Workpiece Thickness | 400 mm |
| Cutting Taper | ±3°/60 mm |
| Work Table Load | 200 kg |
| Machine Dimension | 1170*1550*1700 mm |
| Machine Weight | 1400 kg |
| Machine Packing Dimension | 1870*1750*1900 mm |
| Machine Packing Weight | 1650 kg |
| Model | PA-540 |
|---|---|
| Work Table Dimension | 510*750 mm |
| Machine Travel | 500*400 mm |
| Workpiece Thickness | 400 mm |
| Cutting Taper | ±3°/60 mm |
| Work Table Load | 300 kg |
| Machine Dimension | 1380*1800*1700 mm |
| Machine Weight | 1600 kg |
| Machine Packing Dimension | 1700*2000*2000 mm |
| Machine Packing Weight | 1850 kg |
| Model | PA-650 |
|---|---|
| Work Table Dimension | 540*910 mm |
| Machine Travel | 630*500 mm |
| Workpiece Thickness | 450 mm |
| Cutting Taper | ±3°/60 mm |
| Work Table Load | 400 kg |
| Machine Dimension | 1760*2060*1850 mm |
| Machine Weight | 2300 kg |
| Machine Packing Dimension | 2460*2260*2050 mm |
| Machine Packing Weight | 2600 kg |
| Model | PA-860 |
|---|---|
| Work Table Dimension | 650*1030 mm |
| Machine Travel | 800*630 mm |
| Workpiece Thickness | 500 mm |
| Cutting Taper | ±3°/60 mm |
| Work Table Load | 500 kg |
| Machine Dimension | 2250*2250*1950 mm |
| Machine Weight | 2800 kg |
| Machine Packing Dimension | 2950*2450*2150 mm |
| Machine Packing Weight | 3200 kg |
| Model | PA-1080 |
|---|---|
| Work Table Dimension | 820*1300 mm |
| Machine Travel | 1000*800 mm |
| Workpiece Thickness | 500 mm |
| Cutting Taper | ±3°/60 mm |
| Work Table Load | 600 kg |
| Machine Dimension | 2800*2900*2500 mm |
| Machine Weight | 5000 kg |
| Machine Packing Dimension | 3500*3100*2700 mm |
| Machine Packing Weight | 5400 kg |
* The above specifications subject to change without prior notice.
| Standard Accessories | Optional Accessories |
|---|---|
| LED working lamp *1pcs | XY Axis 5 μ linear scale and display counter |
| Toolbox and workpiece fixture *1set | Diamond dies |
| Tensioning wheel *1pcs | |
| Disassembly guide wheel tool *1pcs | |
| Manual oiler *1pcs | |
| Molybdenum wire vertical correction device *1pcs | |
| Molybdenum wire 0.18 mm *1roll | |
| Emulsifying fluid *1barrel | |
| Guide wheel and bearing *2sets | |
| Operation manual *1pcs |
