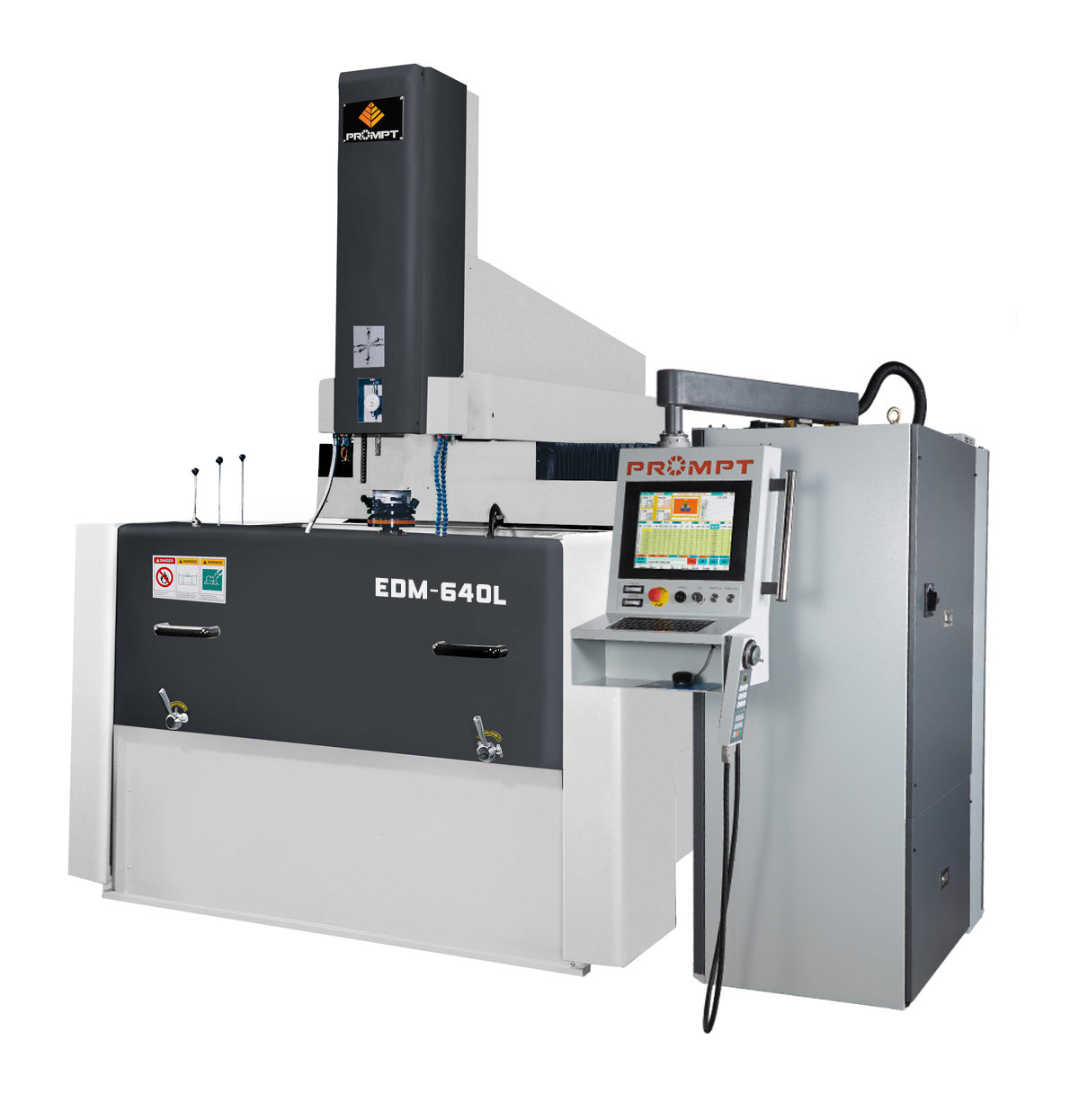

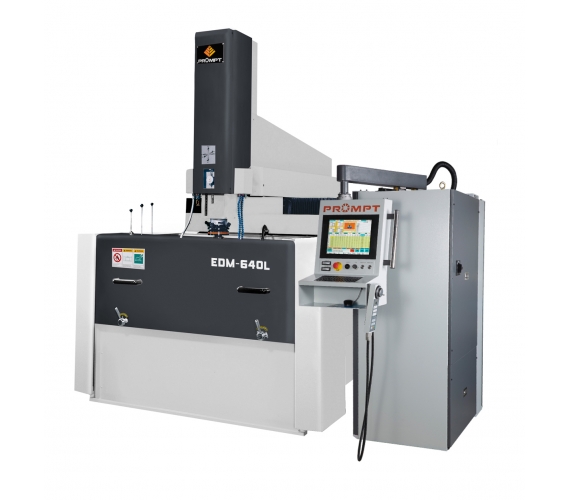

EDM-640L ELECTRICAL DISCHARGE MACHINE
Features:
- The system adopts Windows CE controller
- Six-axis programmable control, XYZ+ABC (can be replaced by XYZ+ABW or XYZ+ACW)
- ATC system and A, B, C axis and spindle tilt option are available to increase machine functionally
- Column movable master by linear slideway on X/Y/Z
- Automatic lubrication
- USB port
- Use a 15-inch LCD touch screen, mouse, and standard keyboard
- Presented in a dialog window with 3D stereo graphic description
- Machining path and graphic display
- Close-loop and feedback circuit design of 0.001mm resolution numerical linear scale is adopted on the 3 axis of the machine. Such design could get precise position setting, and increase the machining precision and efficiency of ORBIT-CUT
- Dialogue programming editor that provides variety of hole enlargement modes (including function of edge search, center search, reference point search)
- Automatic multi-step machining is available
- Automatic home search function
- ARC automatic arcing adjustment
- Automatic center search and offset which could search the center and the deepest point of the hole
- Movement of axis linear (3 axis), arc (2 axis), spiral (3 axis) and offset
- Switch function: Language switch (Chinese/English) and unit system switch (Metric/Inch)
- Single side sparking of 3 axis and 6 directions (plane rotation)
- Automatic programming edition function: According to the material, area, initial current and wear rate do proper adjustment
Item | Unit | EDM-640L |
---|---|---|
Work Table Size | mm | 1000 x 600 |
X/Y/Z Axis Travel | mm | 600 x 450 x 400 |
Electrode Plate to Work Table | mm | 355 - 755 |
Max. Electrode Weight | kg | 250 |
Max. Workpiece Weight | kg | 3000 |
Z Axis Motor Panasonic | K | AC Servo 1.0K |
Z Axis Rapid Feed Rate | m/min | 10 |
Z Axis Cutting Feed Rate | m/min | 10 |
Work Tank Size | mm | 1500 x 940 x 520 |
Oil Tank Capacity | L | 965 |
Weight of Machine Unit | kg | 3900 |
Outside Dimensions | mm | 2830 x 2810 x 2610 |
Standard Accessories | Optional Accessories | ||
---|---|---|---|
Paper filters | Automatic fire extinguisher | ||
Clamping kits | EROWA accessory | ||
Electrode holder | Dielectric cooler | ||
Tool box | C axis | ||
Flushing nozzle | Permanent magnetic table | ||
Working lamp | ATC (Auto Tool Changer) | ||
Drill chuck | Power regular |
