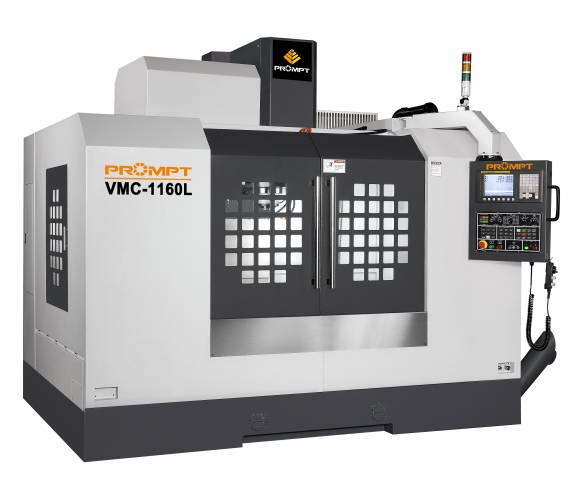

VMC L Series VERTICAL MACHINING CENTERS
Descriptions

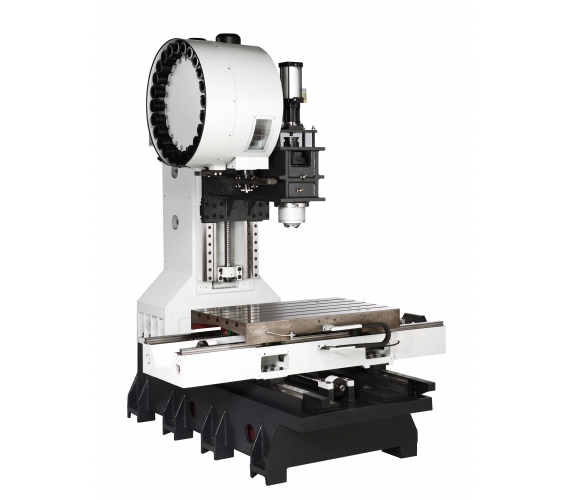

X/Y/Z Linear guide way
Designed for high productivity machining
Features:
- High precision and rigidity spindle
- Top quality gears
- Optical linear scale
- 4th and 5th axis rotary table
- Circular inspection
- Inspection by laser unit
- Spindle dynamic balancing testing
| Model | VMC-500L |
|---|---|
| Travel: | |
| X axis travel | 500 mm |
| Y axis travel | 400 mm |
| Z axis travel | 500 mm |
| Spindle nose to table | 125~625 mm |
| Spindle center to column front | 500 mm |
| Work Table: | |
| Work table size | 600*400 mm |
| Max. table loading | 400 kg |
| T-slot pitch / width / no | 100 x 18 mm x 3T |
| Feedrate: | |
| X / Y / Z rapid feedrate | 36 / 36 / 30 m/min |
| Cutting speed | 10 / 10 / 10 m/min |
| Headstock: | |
| Spindle motor cont. / 30min | 7.5 / 11 kw |
| Spindle taper | BT 40 |
| Spindle speed | 10,000 rpm (opt: 1,2000 / 15,000) |
| ATC: | |
| Tool no & type | 20 Arm |
| Max. tool diameter x length | Ø75 x 250 mm |
| Max. tool weight | 7 kg |
| General information: | |
| Air pressure | 6 kg / cm² |
| Coolant tank capacity | 150 L |
| Machine weight | 3400 kg |
| Gross weight | 3700 kg |
| Floor space (L x W x H) | 175*230*198 cm |
| Packing size (L x W x H) | 285*228*255 cm |
| Positioning | 0.005 mm / 300 mm |
| Repeatability | +/- 0.003 mm |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Mitsubishi M70-2A controller | Mitsubishi M80/M720/M730 controller |
| Coolant system | 12000/15000 r.p.m. spindle (BT, CAT, DIN) |
| Auto lubrication system | Fanuc 0i-MF controller |
| Working & warning lamps | Siemens 828D/840D controller |
| Spindle air blast (M code) | 4th/5th axes CNC rotary or indexing table |
| Toolbox and tools | Chip conveyor with basket |
| Fully enclosed splash guard | Coolant through spindle |
| RS-232 interface | Tool measurement system |
| Rigid tapping | Workpiece measurment system |
| Auto power off | Oil skimmer |
| Heat exchanger for electric box | Spindle chillier |
| M.P.G | 3 axes linear scales |
| leveling bolts and pads | |
| Power transformer | |
| Manuals, quality check report and warranty note |
| Model | VMC-700L |
|---|---|
| Travel: | |
| X axis travel | 700 mm |
| Y axis travel | 500 mm |
| Z axis travel | 500 mm |
| Spindle nose to table | 130~630 mm |
| Spindle center to column front | 500 mm |
| Work Table: | |
| Work table size | 800*500 mm |
| Max. table loading | 400 kg |
| T-slot pitch / width / no | 100 x 18 mm x 5T |
| Feedrate: | |
| X / Y / Z rapid feedrate | 36 / 36 / 36 m/min (opt: 48 / 48 / 48) |
| Cutting speed | 10 / 10 / 10 m/min |
| Headstock: | |
| Spindle motor cont. / 30min | 7.5 / 11 KW |
| Spindle taper | BT 40 |
| Spindle speed | 10,000 rpm (opt: 1,2000 / 15,000) |
| ATC: | |
| Tool no & type | 24 Arm |
| Max. tool diameter x length | Ø80 x 300 mm |
| Max. tool weight | 7 kg |
| General information: | |
| Air pressure | 6 kg / cm² |
| Coolant tank capacity | 150 L |
| Machine weight | 4200 kg |
| Gross weight | 5500 kg |
| Floor space (L x W x H) | 210*228*235 cm |
| Packing size (L x W x H) | 240*228*245 cm |
| Positioning | 0.005 mm / 300 mm |
| Repeatability | +/- 0.003 mm |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Mitsubishi M70-2A controller | Mitsubishi M80/M720/M730 controller |
| Coolant system | 12000/15000 rpm spindle (BT, CAT, DIN) |
| Auto lubrication system | Fanuc 0i-MF controller |
| Working & warning lamps | Siemens 828D/840D controller |
| Spindle air blast (M code) | 4th/5th axes CNC rotary or indexing table |
| Toolbox and tools | Chip conveyor with basket |
| Fully enclosed splash guard | Coolant through spindle |
| RS-232 interface | Tool measurement system |
| Rigid tapping | Workpiece measurment system |
| Auto power off | Oil skimmer |
| Heat exchanger for electric box | Spindle chillier |
| M.P.G | 3 axes linear scales |
| leveling bolts and pads | |
| Power transformer | |
| Manuals, quality check report and warranty note |
| Model | VMC-860L |
|---|---|
| Travel: | |
| X axis travel | 850 mm |
| Y axis travel | 600 mm |
| Z axis travel | 600 mm |
| Spindle nose to table | 100~700 mm |
| Spindle center to column front | 717 mm |
| Work Table: | |
| Work table size | 1000*600 mm |
| Max. table loading | 800 kg |
| T-slot pitch / width / no | 100 x 18 mm x 6T |
| Feedrate: | |
| X / Y / Z rapid feedrate | 30 / 30 / 30 m/min |
| Cutting speed | 10 / 10 / 10 m/min |
| Headstock | |
| Spindle motor cont. / 30min | 11 / 15 KW |
| Spindle taper | BT 40 |
| Spindle speed | 10,000 rpm (opt: 1,2000 ) |
| ATC: | |
| Tool no & type | 24 Arm |
| Max. tool diameter x length | Ø78 x 300 mm |
| Max. tool weight | 8 kg |
| General information: | |
| Air pressure | 6 kg / cm² |
| Coolant tank capacity | 300 L |
| Machine weight | 6200 kg |
| Gross weight | 7000 kg |
| Floor space (L x W x H) | 360*250*260 cm |
| Packing size (L x W x H) | 318*230*255 cm |
| Positioning | 0.005 mm / 300 mm |
| Repeatability | +/- 0.003 mm |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Fanuc 0i-MF plus controller | Mitsubishi M80/M720/M730 controller |
| Coolant system | 12000/15000 rpm spindle (BT, CAT, DIN) |
| Auto lubrication system | Fanuc 0i-MF controller |
| Working & warning lamps | Siemens 828D/840D controller |
| Spindle air blast (M code) | 4th/5th axes CNC rotary or indexing table |
| Toolbox and tools | Chip conveyor with basket |
| Fully enclosed splash guard | Coolant through spindle |
| RS-232 interface | Tool measurement system |
| Rigid tapping | Workpiece measurment system |
| Auto power off | Oil skimmer |
| Heat exchanger for electric box | Spindle chillier |
| M.P.G | 3 axes linear scales |
| leveling bolts and pads | |
| Power transformer | |
| Manuals, quality check report and warranty note |
| Model | VMC-1160L |
|---|---|
| Travel: | |
| X axis travel | 1100 mm |
| Y axis travel | 600 mm |
| Z axis travel | 600 mm |
| Spindle nose to table | 100~700 mm |
| Spindle center to column front | 717 mm |
| Work Table: | |
| Work table size | 1200*600 mm |
| Max. table loading | 1000 kg |
| T-slot pitch / width / no | 100 x 18 mm x 6T |
| Feedrate: | |
| X / Y / Z rapid feedrate | 30 / 30 / 30 m/min |
| Cutting speed | 10 / 10 / 10 m/min |
| Headstock: | |
| Spindle motor cont. / 30min | 11 / 15KW |
| Spindle taper | BT 40 |
| Spindle speed | 10,000 rpm (opt: 1,2000) |
| ATC: | |
| Tool no & type | 24 Arm |
| Max. tool diameter x length | Ø78 x 300 mm |
| Max. tool weight | 8 kg |
| General information: | |
| Air pressure | 6 kg / cm² |
| Coolant tank capacity | 300 L |
| Machine weight | 7000 kg |
| Gross weight | 7800 kg |
| Floor space (L x W x H) | 360*250*260 cm |
| Packing size (L x W x H) | 318*230*255 cm |
| Positioning | 0.005 mm/ 300 mm |
| Repeatability | +/- 0.003mm |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Fanuc 0i-MF Plus controller | Mitsubishi M80/M720/M730 controller |
| Coolant system | 12000/15000 rpm spindle (BT, CAT, DIN) |
| Auto lubrication system | Fanuc 0i-MF controller |
| Working & warning lamps | Siemens 828D/840D controller |
| Spindle air blast (M code) | 4th/5th axes CNC rotary or indexing table |
| Toolbox and tools | Chip conveyor with basket |
| Fully enclosed splash guard | Coolant through spindle |
| RS-232 interface | Tool measurement system |
| Rigid tapping | Workpiece measurement system |
| Auto power off | Oil skimmer |
| Heat exchanger for electric box | Spindle chillier |
| M.P.G | 3 axes linear scales |
| leveling bolts and pads | |
| Power transformer | |
| Manuals, quality check report and warranty note |
| Model | VMC-1270L |
|---|---|
| Travel: | |
| X axis travel | 1200 mm |
| Y axis travel | 700 mm |
| Z axis travel | 700 mm |
| Spindle nose to table | 150~850 mm |
| Spindle center to column front | 700 mm |
| Work Table: | |
| Work table size | 1500*700 mm |
| Max. table loading | 1200 kg |
| T-slot pitch / width / no | 100 x 18 mm x 7T |
| Feedrate: | |
| X / Y / Z rapid feedrate | 36 / 36 / 36 m/min (opt: 48 / 48 / 48) |
| Cutting speed | 10 / 10 / 10 m/min |
| Headstock: | |
| Spindle motor cont. / 30min | 11 / 15KW |
| Spindle taper | BT 40 / BT 50 |
| Spindle speed | 10,000/6,000 rpm (opt: 1,2000 / 15,000) |
| ATC: | |
| Tool no & type | 24/30 Arm |
| Max. tool diameter x length | Ø80 x 300 mm/ Ø100 x 300 mm |
| Max. tool weight | 7 /15 kg |
| General information: | |
| Air pressure | 6 kg / cm² |
| Coolant tank capacity | 300 L |
| Machine weight | 8500 kg |
| Gross weight | 9000 kg |
| Floor space (L x W x H) | 300*219*246 cm |
| Packing size (L x W x H) | 385*310*315 cm |
| Positioning | 0.005 mm/ 300 mm |
| Repeatability | +/- 0.003 mm |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Mitsubishi M70-2A controller | Mitsubishi M80/M720/M730 controller |
| Coolant system | 12000/15000 rpm spindle (BT, CAT, DIN) |
| Auto lubrication system | Fanuc 0i-MF controller |
| Working & warning lamps | Siemens 828D/840D controller |
| Spindle air blast (M code) | 4th/5th axes CNC rotary or indexing table |
| Toolbox and tools | Chip conveyor with basket |
| Fully enclosed splash guard | Coolant through spindle |
| RS-232 interface | Tool measurement system |
| Rigid tapping | Workpiece measurment system |
| Auto power off | Oil skimmer |
| Heat exchanger for electric box | Spindle chillier |
| M.P.G | 3 axes linear scales |
| leveling bolts and pads | |
| Power transformer | |
| Manuals, quality check report and warranty note |
| Model | VMC-1370L |
|---|---|
| Travel: | |
| X axis travel | 1300 mm |
| Y axis travel | 700 mm |
| Z axis travel | 700 mm |
| Spindle nose to table | 150~850 mm |
| Spindle center to column front | 700 mm |
| Work Table: | |
| Work table size | 1500*700 mm |
| Max. table loading | 1200 kg |
| T-slot pitch / width / no | 100 x 18 mm x 7T |
| Feedrate: | |
| X / Y / Z rapid feedrate | 36 / 36 / 36 m/min (opt: 48 / 48 / 48) |
| Cutting speed | 10 / 10 / 10 m/min |
| Headstock: | |
| Spindle motor cont. / 30min | 11 / 15 KW |
| Spindle taper | BT 40 / BT 50 |
| Spindle speed | 10,000/6,000 rpm (opt: 1,2000 / 15,000) |
| ATC: | |
| Tool no & type | 24/30 Arm |
| Max. tool diameter x lengt | Ø80 x 300 mm/ Ø100 x 300 mm |
| Max. tool weight | 7 / 15 kg |
| General information: | |
| Air pressure | 6 kg / cm² |
| Coolant tank capacity | 300 L |
| Machine weight | 8500 kg |
| Gross weight | 9000 kg |
| Floor space (L x W x H) | 300*219*246 cm |
| Packing size (L x W x H) | 385*310*315 cm |
| Positioning | 0.005 mm/ 300 mm |
| Repeatability | +/- 0.003 mm |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Mitsubishi M70-2A controller | Mitsubishi M80/M720/M730 controller |
| Coolant system | 12000/15000 rpm spindle (BT, CAT, DIN) |
| Auto lubrication system | Fanuc 0i-MF controller |
| Working & warning lamps | Siemens 828D/840D controller |
| Spindle air blast (M code) | 4th/5th axes CNC rotary or indexing table |
| Toolbox and tools | Chip conveyor with basket |
| Fully enclosed splash guard | Coolant through spindle |
| RS-232 interface | Tool measurement system |
| Rigid tapping | Workpiece measurment system |
| Auto power off | Oil skimmer |
| Heat exchanger for electric box | Spindle chillier |
| M.P.G | 3 axes linear scales |
| leveling bolts and pads | |
| Power transformer | |
| Manuals, quality check report and warranty note |
| Model | VMC-1570L |
|---|---|
| Travel: | |
| X axis travel | 1500 mm |
| Y axis travel | 700 mm |
| Z axis travel | 700 mm |
| Spindle nose to table | 150~850 mm |
| Spindle center to column front | 700 mm |
| Work Table: | |
| Work table size | 1650*700 mm |
| Max. table loading | 1500 kg |
| T-slot pitch / width / no | 100 x 18 mm x 7T |
| Feedrate: | |
| X / Y / Z rapid feedrate | 36 / 36 / 36 m/min (opt: 48 / 48 / 48) |
| Cutting speed | 10 / 10 / 10 m/min |
| Headstock: | |
| Spindle motor cont. / 30min | 11 / 15 kw |
| Spindle taper | BT 40 / BT 50 |
| Spindle speed | 10,000/6,000 rpm (opt: 1,2000 / 15,000) |
| ATC: | |
| Tool no & type | 24/30 Arm |
| Max. tool diameter x length | Ø80 x 300 mm/ Ø100 x 300 mm |
| Max. tool weight | 7 / 15 KG |
| General information: | |
| Air pressure | 7 kg/cm² |
| Coolant tank capacity | 350 L |
| Machine weight | 11000 kg |
| Gross weight | 11500 kg |
| Floor space (L x W x H) | 370*330*260 cm |
| Packing size (L x W x H) | 400*232*256 cm |
| Positioning | 0.005 mm/ 300 mm |
| Repeatability | +/- 0.003 mm |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Mitsubishi M70-2A controller | Mitsubishi M80/M720/M730 controller |
| Coolant system | 12000/15000 rpm spindle (BT, CAT, DIN) |
| Auto lubrication system | Fanuc 0i-MF controller |
| Working & warning lamps | Siemens 828D/840D controller |
| Spindle air blast (M code) | 4th/5th axes CNC rotary or indexing table |
| Toolbox and tools | Chip conveyor with basket |
| Fully enclosed splash guard | Coolant through spindle |
| RS-232 interface | Tool measurement system |
| Rigid tapping | Workpiece measurment system |
| Auto power off | Oil skimmer |
| Heat exchanger for electric box | Spindle chillier |
| M.P.G | 3 axes linear scales |
| leveling bolts and pads | |
| Power transformer | |
| Manuals, quality check report and warranty note |
* The above specifications subject to change without prior notice.
